IR Dome Camera

Model:IDAF-N370P
 Synopsis:
  • This camera can capture clear images with IR function even in darkness.
  • Split glass design,lens is separate with IR,totally solve flash,reflecting and whitening ,etc.problems.
  • Provides OSD with various 8 languages.
  • Horizontal mirror,WDR,HLC,ATR,Smart IR,Motion detection,2D-NR and 4 zones Privacy mask functions,etc.
  • It meets the standard of IP67 anti-water,anti-dust,adaptable to any environment,even under water.
 Specifications:
  • Adopt Sony Enhanced "Effio-E" DSP(CXD4140GG) with high sensitivity.Apply world-class advanced BELL digital signal processing technology,providing excellent-quality image;
  • Equipped with Japanese original 960H EXview HAD CCD II(ICX672AKA/ICX673AKA),700TVL Star level Lower illumination CCD,the minimum illumination is 0.0001Lux,no flash,colorless bleaching,with high capability of color reproduction,recording natural and clear image;
  • Combine the newest low-power and wide-voltage circuit design with advantages in quad circuit protection,anti-lightning,anti-surge,anti-electric and magnetic interference,more stable performance and longer product life;
  • Match with 700TVL IR sense CCD.The minimum illumination is 0Lux with IR on.
  • 36 PCS ø5 ultra-bight IR LED.Indoor IR distance can reach up to 30-40M;
  • Design with intelligent light-activated and automatically detecting technology to control the infrared lights,reducing working hours of the light and extending product life in an energy-saving and environment-friendly way;
  • Apply innovative technology of series-parallel with lights working independently without mutual interference;
  • Adopt professional IR lens with better night-view performance than normal lens;
  • Split glass design,lens is separate with IR,totally solve flash,reflecting and whitening ,etc.problems;
  • Original imported glasses,with anti-dust,anti-fog,waterproof function;
  • Provides OSD with various kinds of languages,include English/Chinese/Spanish/Russian;
  • It has basic but significant function such as Automatic backlight control (BLC),automatic gain control (AGC) and automatic white balance (AWB) also provides horizontal mirror,WDR,smart IR,motion detection,2D-NR and 4 zones Privacy mask functions,etc;
  • Brightness,contrast,saturation and hue adjustment;
  • Single color or color to black functions can be setup,adapt for different needs of more monitoring sites;
  • Back Light compensation(BLC),high light compensation(HLC) and Adaptive Tone Reproduction(ATR) function,reverses the area about strong light,adjust the contrast of object,to light balance;
  • High-grade alloy shell,excellent heat dissipation to ensure stable camera work long hours;
  • Modern design of shell shape with beautiful appearance,easy to adjust and install;
  • Meet the standard of IP67 in anti-water,anti-dust,highly adaptable to any environment,even work under water;
  • Use standard DC12V power supply and compatible with range 3.6-25MM fixed lens;
 Features:

Effio-E DSP 700 TVL Low-Brightness IR Camera
Effio-E DSP 700 TVL Low-Brightness IR Camera

D/N Monitoring Water Proof 3.6-25MM Fix Lens Special IR Lens
D/N Monitoring Water Proof 3.6-25MM Fix Lens Special IR Lens

Double Glass Metal Shell Thermal Design OSD Menu
Double Glass Metal Shell Thermal Design OSD

WDR HLC Smart IR 2D-NR
WDR HLC Smart IR 2D-NR

ATR Motion Detection Privacy Mask Horizontal Mirror
ATR Motion Detection Privacy Mask Horizontal Mirror

Newest Circuit Design Non-Pb
Newest Circuit Design Non-Pb

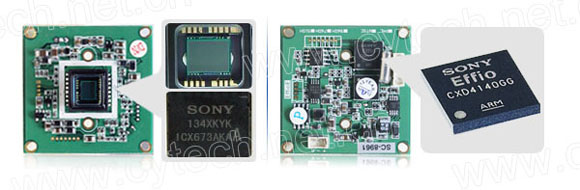

 Original SONY Chipset

Equipped with Japanese original SONY 960H EXview HAD CCD II (ICX672AKA / ICX673AKA ) and Sony Enhanced "Effio-E" DSP(CXD4140GG)

Original SONY Chipset

 Six-Layer PCB

The number of PCB board’s layer will influence the electrical performance directly,more layers of PCB board,the larger area of wiring,more uniformly of placing wires.Signal insulation will be better.Interference between the signals will be less and product performance will be more stable.

Six-Layer PCB

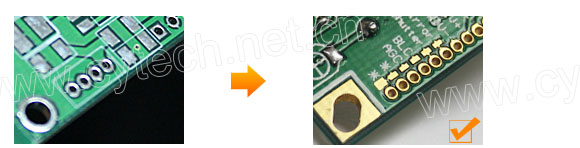

 Immersion Au Process

The bonding pad adopts the Immersion Au Process,components contact well and low loss,the signal transmitted through the copper layer will not be affected,and also with good heat dissipation and electrical performance.

Immersion Au Process

 Profesional Vedio Cable

Inferior video cable uses a kind of thin and impurity containing copper core ,and the protective coating can be inflammable easily,which will affect the signal transmission and electricity utilization seriously; however,professional vedio cable adopts pure thicker copper core,with the flame-retardanting of protective coating ,it makes sure the vedio transmission more stable and electrical utilization more safe.

Inferior Video Cable High Quality Video Cable
Inferior Video Cable High Quality Video Cable

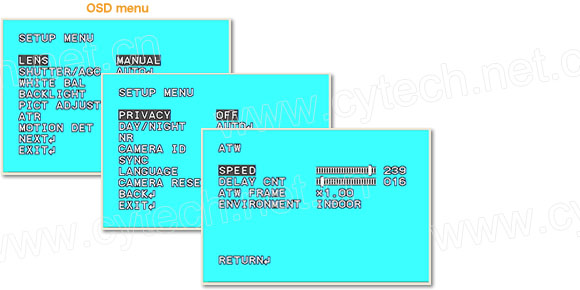

 Preset OSD Menu Detail Menu >>>

The Enhanced "Effio-E" (CXD4140GG) includes OSD (on-screen display) functions that allow camera settings to be made using the display.This function provides preset menus in eight languages (English,French,German,Spanish,Portuguese,Chinese,Russian,and Japanese) and allows camera settings to be made easily without using an external microcontroller.

OSD Menu

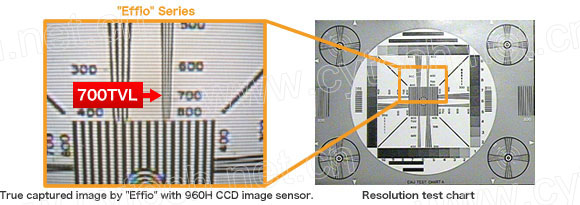

 High Resolution

Higher horizontal resolution of over 650TVL by 960H CCD image sensor

High Resolution image

Confirmed maximum resolution to achieve the 700TVL.
Measurement method is referred to JEITA (TTR-4602B).

 Lower Illumination

It can get more clearer image at darker environment for lower illumination cameras.It needs less brightness to distinguish objects than normal cameras.

Normal Illumination Effective Lower Illumination Effective
Normal Illumination Effective Lower Illumination Effective

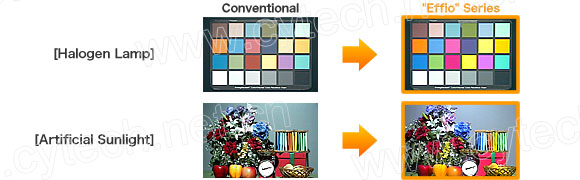

 Excellent color reproduction

Excellent color reproduction under variety of light sources [1,800K to 10,500K]

ExcellentColorReproductionimage

 ATR/ATR-EX

The ATR (Adaptive Tone Reproduction) function provides gradation compensation to improve the contrast of subjects whose gradation has been lost in cases where,for instance,both low-luminance areas and high-luminance areas exist in the same picture.
The ATR function improves the visibility of the entire picture by providing the optimum gradation compensation for the image in one field based on the luminance information.

ATR OFF ATR On
ATR OFF ATR On
 High Light Compensation(HLC)

It is a function which reverses the area about strong light,To light balance.

High Light Compensation Off High Light Compensation On
High Light Compensation Off High Light Compensation On

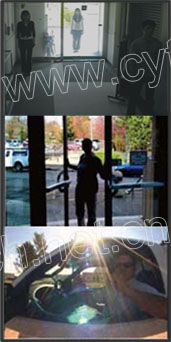

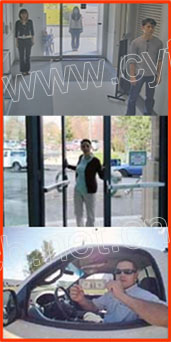

 Wide Dynamic Range (WDR)

The Wide Dynamic Range (WDR) is a function that it can acquire natural images with fewer blown out highlights and blocked up shadows by combining a multiple number of images,shot at different exposure times,using digital signal processing.

WDR OFF WDR On
WDR OFF WDR On
 Noise reduction

Noise reduction is a function that reduces the image noise in order to improve the image quality of the camera.In particular,it reduces the noise which is generated under low-brightness shooting conditions and other high-gain states.
The Enhanced "Effio-E" (CXD4140GG) comes with a space-based NR (2D-NR) function.

2D-NR

2D-NRimage

2D+3D-NR

2D+3D-NRimage

 Exposure Control for IR Light

Exposure Control for IR Light can reduce the over-exposure of IR center area,making the whole image gentler.

Exposure Control OFF Exposure Control On
Exposure Control OFF Exposure Control On
 Applications:
This camera is equipped with infrared lights,It will automatically open infrared light to compensate ambient light in low-light environment,It applies to poor-light or any dark environment,displaying clear images in the dark.
Reaching the IP67 waterproof rating,it's applicable to a variety of open spaces,underwater monitoring (recommended depth of not more than 1.5 meters).
And it's widely used for places such as warehouse where monitoring space is no more than 40M,stairways,corridors,passageways,roads,open floor,the underground parking lot,rain pipes and other places.
