Position: Products > CCTV CCD Camera > IDAFSeries > IDAF-N342E IR Waterproof Dome Camera

IR Waterproof Dome Camera

Model:IDAF-N342E
 Synopsis:
  • This camera can capture clear images with IR function even in darkness.
  • Split glass design,lens is separate with IR,totally solve flash,reflecting and whitening ,etc.problems.
  • It meets the standard of IP67 anti-water,anti-dust,adaptable to any environment,even under water.
 Specifications:
  • Adopt Original Sony DSP(CXD3142R) with high sensitivity.Apply world-class advanced BELL digital signal processing technology,providing excellent-quality image;
  • Equipped with Japanese original Exview HAD CCD II(ICX632BKA/ICX633BKA),420TVL lower illumination CCD,The minimum illumination is 0.03Lux,no flash,colorless bleaching,with high capability of color reproduction,recording natural and clear image;
  • Combine the newest low-power and wide-voltage circuit design with advantages in quad circuit protection,anti-lightning,anti-surge,anti-electric and magnetic interference,more stable performance and longer product life;
  • Match with 420TVL IR sense CCD.The minimum illumination is 0Lux with IR on;
  • 36 PCS ø5 ultra-bight IR LED.Indoor IR distance can reach up to 30-40M;
  • Design with intelligent light-activated and automatically detecting technology to control the infrared lights,reducing working hours of the light and extending product life in an energy-saving and environment-friendly way;
  • Apply innovative technology of series-parallel with lights working independently without mutual interference;
  • Adopt professional IR lens with better night-view performance than normal lens;
  • Split glass design,lens is separate with IR,totally solve flash,reflecting and whitening ,etc.problems;
  • Original imported glasses,with anti-dust,anti-fog,waterproof function;
  • Automatic backlight control (BLC),automatic gain control (AGC),and automatic white balance (AWB) functions,etc.;
  • High-grade alloy shell,excellent heat dissipation to ensure stable camera work long hours;
  • Modern design of shell shape with beautiful appearance,easy to adjust and install;
  • Meet the standard of IP67 in anti-water,anti-dust,highly adaptable to any environment,even work under water;
  • Use standard DC12V power supply and compatible with range 3.6-25MM fixed lens;
 Features:

SONY CCD 420TVL Low-Brightness IR Camera
SONY CCD 420TVL Low-Brightness IR Camera

D/N Monitoring Water Proof 3.6-25MM Fix Lens Special IR Lens
D/N Monitoring Water Proof 3.6-25MM Fix Lens Special IR Lens

Double Glass Metal Shell Thermal Design Newest Circuit Design
Double Glass Metal Shell Thermal Design Newest Circuit Design

Non-Pb
Non-Pb

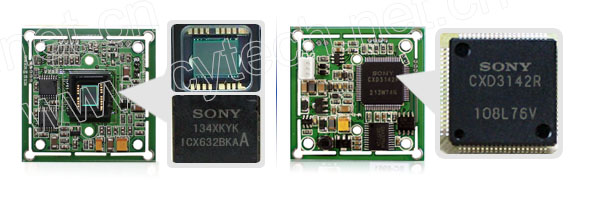

 Original SONY Chipset

Equipped with Japanese original SONY Exview HAD CCD II (ICX632BKA / ICX633BKA) and DSP(CXD3142R) ;

Original SONY Chipset

 Six-Layer PCB

The number of PCB board’s layer will influence the electrical performance directly,more layers of PCB board,the larger area of wiring,more uniformly of placing wires.Signal insulation will be better.Interference between the signals will be less and product performance will be more stable.

Six-Layer PCB

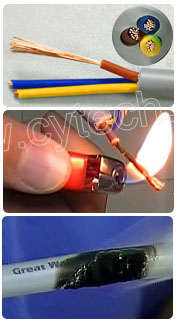

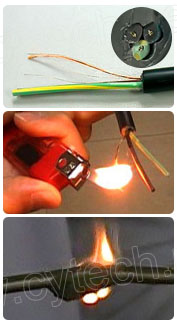

 Profesional Vedio Cable

Inferior video cable uses a kind of thin and impurity containing copper core ,and the protective coating can be inflammable easily,which will affect the signal transmission and electricity utilization seriously; however,professional vedio cable adopts pure thicker copper core,with the flame-retardanting of protective coating ,it makes sure the vedio transmission more stable and electrical utilization more safe.

Inferior Video Cable High Quality Video Cable
Inferior Video Cable High Quality Video Cable
 420TVL Resolution

over 420TVL by Exview HAD CCD II (ICX632BKA / ICX633BKA ) image sensor

High Resolution image

Measurement method is referred to JEITA (TTR-4602B).

 Excellent color reproduction

Excellent color reproduction under variety of light sources [1,800K to 10,500K]

ExcellentColorReproductionimage

 Lower Illumination

It can get more clearer image at darker environment for lower illumination cameras.It needs less brightness to distinguish objects than normal cameras.

Normal Illumination Effective Lower Illumination Effective
Normal Illumination Effective Lower Illumination Effective
 Applications:
This camera is equipped with infrared lights,It will automatically open infrared light to compensate ambient light in low-light environment,It applies to poor-light or any dark environment,displaying clear images in the dark.
Reaching the IP67 waterproof rating,it's applicable to a variety of open spaces,underwater monitoring (recommended depth of not more than 1.5 meters).
And it's widely used for places such as warehouse where monitoring space is no more than 40M,stairways,corridors,passageways,roads,open floor,the underground parking lot,rain pipes and other places.
